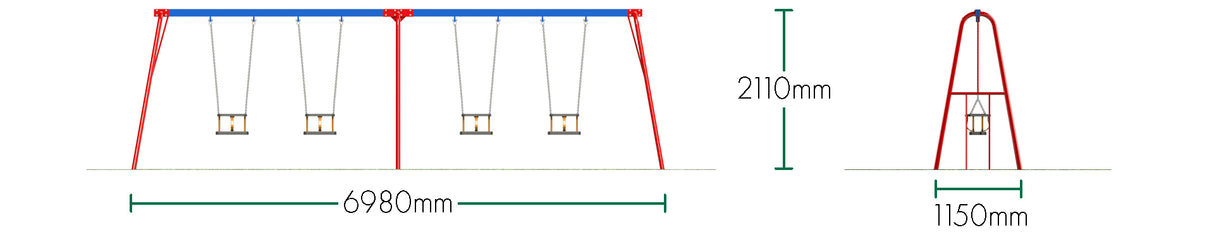

Dimensions
Length: 6980mm
Width: 1150mm
Height: 2110mm
Free Fall Height: 1220mm
Safety Surfacing Area Required: 34.86m2
Safety Surface Area Dimensions: 6.052 x 5.76m
Safety surface area dimensions above are for wet pour surfacing (synthetic). If loose fill is being used the length needs to be increased to 7.052m (from 6.052m) to allow an extra 500mm of surfacing at either end.
Additionally for a wet pour impact area that is level with the surrounding surface, there must be an additional area with a length of 500mm in the direction of the swing free from obstacles.
Different steel colours available upon request.
